Matrix Ribbon Rig/ Parallel Evaluation
After learning how to use matrix math to create the robot rigs for our game "Rage Quit", I was inspired to learn more once I had the time to do so. Our robot characters were designed so the rigging process would be simple. The robotic arms and legs were hard surface objects that didn't need extra rigging required to create bends, arcs, and twists. After finishing the game, I wanted to come back to the idea of creating ribbon rigs using matrix math for future characters. I set out to recreate a traditional style ribbon rig, and my resulting ribbon has NO constraints, blend shapes, clusters, or skin weights. I also wanted to dive deeper into checking performance speeds in matrix rigs and comparing it to older style rigs. I also explored how this modern matrix - based approach is more parallel friendly than methods of the past. I haven't seen any other ribbons created exactly like this online, and in this article I will explain my thought process, how I made it, and how my ribbon compares to older styles of ribbons.
Goals
Ribbon rigs are incredibly useful for animation, however they are extremely costly and performance heavy. I wanted to create a ribbon rig that minimized performance impact while maintaining animation capabilities.
What I wanted in my rig:
1) Infinite/ non-flipping twist
2) Bend controls
3) Extra bend controls
4) Parallel evaluation friendly
What I wanted to avoid in my rig:
1) Constraints
2) Blend shapes
3) Skin weights
4) Clusters
5) Deformers
I want to avoid these types of tools because of how they are evaluated by Maya. These types of nodes are not parallel friendly and they will dramatically slow performance.
Parallel Evaluation
Before we begin, we need to understand the difference between parallel & serial DG (Dependency Graph) evaluation.
Parallel evaluation is the ability of a system to process multiple operations at the same time, spreading the workload across multiple CPU cores. The alternative to this is a process in which each operation is processed in a strictly sequential order. In Maya's case, this is DG evaluation.
Think of this scenario: You have a room with 10 boxes, and you need all of the boxes opened.
DG Evaluation (Serialized) = Telling 1 person to go into the room and open the boxes. The processing time is going to be slow because this 1 person has to open the boxes one-by-one, they can't open 10 at the same time.
Parallel Evaluation (Non-Serialized) = Telling 10 people to go into the room, each grab a box, and open it. The processing time is going to be much faster because each box is opened simultaneously. This is a non-serialized workflow.
Old Maya started with serialized DG evaluation, which means that nodes were evaluated sequentially, even if they were independent from each other. DG evaluation was a great practice when hardware & software were older and more limited in power. It also helped with ensuring correct results from an operation since everything was streamlined into a singular, hard hitting chain of events. As a result of this, nodes were created to fit a DG friendly sequential order of events.
Nodes fitting a DG workflow are dependency based. They're designed to fit into a sequence, meaning that they require a specific order. Nodes in the chain are completely dependent on the prior sequence of events (sequential dependency) or stored information (stateful).
Around 2016, newer versions of Maya began to use parallel evaluation. This meant that Maya could now process multiple operations across multiple CPU cores. The issue though is that Maya can't simply evaluate everything separately, as older nodes were not designed with parallel in mind. This means that some nodes force serialization (one-by-one), even in a system that could do more, which creates slow bottlenecks and underutilizes modern hardware. To counter this, newer parallel friendly nodes were introduced.
Nodes fitting a parallel workflow are independent. They aren't forced into a chain and they don't rely entirely on the prior sequence (independent) or stored information (stateless).
Think of this scenario: You want someone to open a box and take the contents out.
Dependency Node (Stateful) = This box would be a huge, heavy box with layers of duct tape, plastic, and styrofoam. This box also requires an instruction manual and a tool to open. Inside the box are a lot of contents. Opening this box relies on the person getting the instructions and tool first. The person then has to do a lot of work following the instructions to open the box and bring the contents out. They're relying on the instructions to open the box the entire time.
Independent Node (Stateless) = This box is a tiny, light box that has an easy lid to open. No instructions or tools are needed. Inside the box is nothing but a small amount of contents. The same person has no issue effortlessly opening the box and taking the contents out right away.
Older serialized DG style nodes create huge bottlenecks because they are trying to process too much information and especially prior results earlier in the chain. They can't be evaluated in parallel because of this. Instead, parallel evaluation favors smaller nodes that are processing only a small amount of information independently.
What does this mean for my rig?
If I want a faster performing rig I'll want to use parallel friendly nodes like matrix math nodes and avoid using larger dependency based nodes like deformers.
Important Note: All nodes live in the DG (Dependency Graph), parallel evaluation is just a newer mode of evaluation. Parallelism isn't just a result of how a node is created, but also how it is connected. Think back to the boxes. The parallel nodes are easier to open and multiple can be opened at the same time.
Getting Started
Like my robot rigs, I once again had to "start over" from the beginning. This meant I had to look back on older ribbon rigs and learn how they worked under the hood.
The first issue I tackled was the problem of getting a joint to follow the surface of a NURBS plane.
Traditional ribbon rigs use nHair follicles to get a UV point on a NURBS surface and joints are then parented to these follicle nodes. The surface itself is then usually driven by a deformer of some kind. With this setup, the order basically goes:
Controller → Deformer → NURBSRibbonShape → nHair Follicle → Joint.
While this method works for getting desired animated behavior, it is performance heavy due to the deformer and hair follicle. Deformers like clusters, blendshapes, and wires are heavier to process and are not parallel-friendly due to creating a serialized chain. A deformer evaluates the entire ribbon a whole, making it slower to process because everything must go through that deformer bottleneck.
Hair follicles are also very heavy. The nHair follicle system is built for simulation, and even when you aren't using them, the support structure for attributes like dynamics, constraints, simulation states, and hair settings are still being processed. This creates another bottleneck that isn't parallel friendly, which makes sense because the nHair system was introduced before modern parallel evaluation in Maya.
With newer Maya math nodes, we can get around these 2 issues while maintaining the same desired animated behavior. To do this, I use a uvPin node to follow a point on the NURBS surface and to drive the joint. To drive the surface, I used a pointMatrixMult node. In my example, my new order goes like this:
Controller → pointMatrixMult → NURBSRibbonShape → uvPin → Joint.
The deformer is replaced by a significantly lighter pointMatrixMult node. This node takes a matrix value (in this case the world matrix of the CTRL) and passes this position into a control point in the NURBS ribbon. This node is just passing math and it is only evaluating a single control point on the ribbon, rather than evaluating the entire ribbon. This node is also not trying to read into anything prior to the controller. Due to it's small and independent structure, it is parallel evaluation friendly because multiple of these tiny nodes can be processed at the same time.

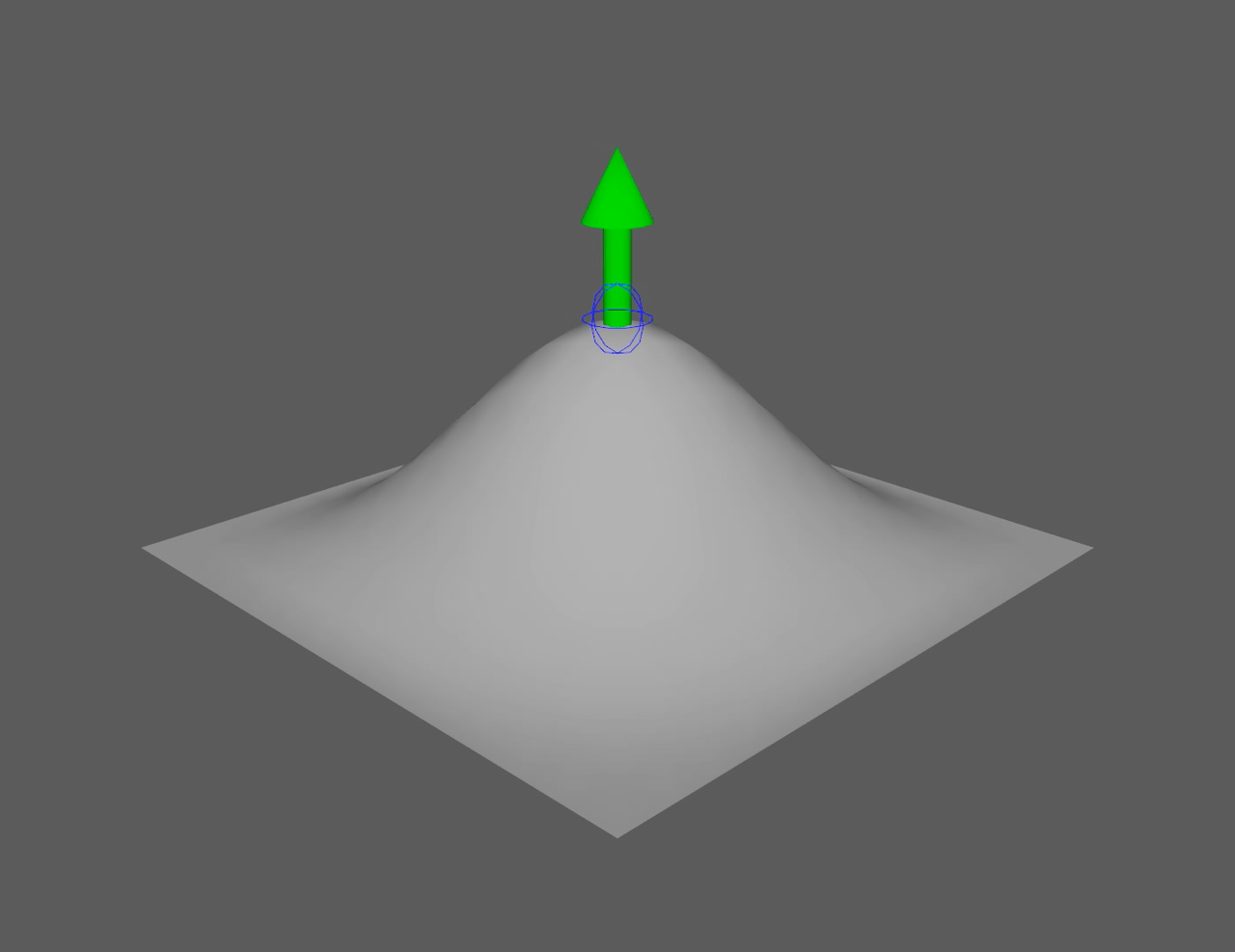

Next, the uvPin node is where the bigger performance impact is seen. A uvPin node is much smaller than a follicle node, as it isn't processing an entire simulation system. Instead, it is just getting the position from a NURBS surface and following that point. This node isn't entirely independent though as it is reading the information of a deformed geometry. It is still parallel friendly though because one uvPin isn't reliant on the results of another uvPin, rather they can all be processed at the same time still.
In the below images, I compare the node network of the old setup vs my new setup. From a visual perspective, you can see the difference in node sizes. On the left, you can see the much larger deformer (blend shape) nodes, hair follicles, and parent constraints. On the right, you can see the tiny matrix math nodes being used to pass math.
Old joint structure
New joint structure
The examples above are an isolated example for a single joint. In a ribbon rig, this network is scaled up to include 5 joints. On the left, the sequence chain grows longer, creating an extended bottleneck. On the right, it can be seen how multiple pointMatrixMult nodes are being processed at the same time. The hair follicle & uvPin nodes look like they're both being evaluated separately though. Under the hood, the hair follicles are lining up in order, Maya can't process them all at the same time. All of the uvPin nodes can be evaluated simultaneously under the hood. What is seen on the right is more accurate to how the rig is being evaluated.
Old ribbon structure
New ribbon structure
Why is this important?
The difference between these rigs can be seen at a smaller scale, but it is really felt in a much larger scale. A typical character will have multiple ribbons. For example, an arm has 2 ribbons, 1 for the upper arm and 1 for the forearm. This is where scalability matters. In the example to the left, imagine extending that chain out 8 times in a long horizontal chain. In the example to the right, imagine this structure stacking up vertically, all having a similar starting point.
Maya can process the large stack of smaller nodes much faster than the long chain of bigger nodes.
Ribbon Structure
Now that we've covered the different nodes and why they matter, let's look at how the ribbon rig behavior is built. For my ribbon, I want it to be able to twist infinitely, bend, and physically scale in the middle or ends.
Old ribbon
New ribbon
Both of these ribbons give me the same behavior, however it can be easily seen how they differ. On the left exists a larger outliner cluttered with bottleneck nodes & tools. The extra blend shape ribbon can also be seen past the main ribbon. On the right is a much cleaner outliner with no constraints, deformers, blendshapes, or clusters. All of the math for the behaviors is set up in the node editor. (Refer to the ribbon structure images)
The left side ribbon gets animation behavior based off of the blendshape ribbon. The blendshape ribbon is being deformed by a twist deformer and a wire deformer, this gives it twist and bend. This is already a large process as each deformer works in a sequence, and then that piece of geometry is then read by the main ribbon. That's 2 entire ribbons being evaluated already, and one depends on the other, and that other one depends on the deformers. Once the behavior is created, joints (hidden under the hair follicles) then follow the hair follicles. The hair follicles are reading the geometry, carrying the simulation system, working one at a time, and finally driving the joint.
The right side ribbon gets animation behavior because of how I set up the math in the node editor. Instead of deforming geometry, I get the animation behavior by feeding translation data through math nodes from one controller to the other.

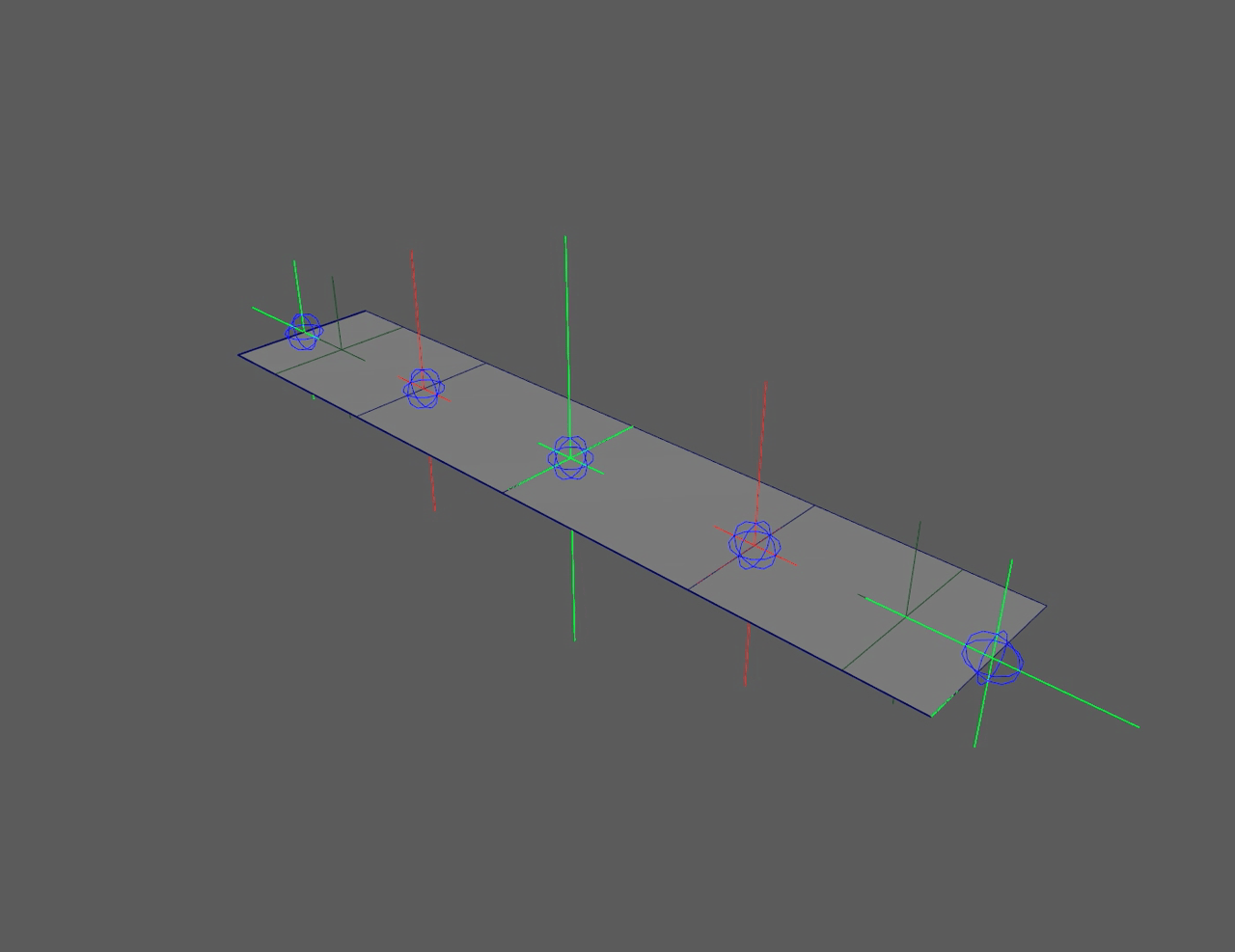

Twisted and bent by a blendshape with deformers
Twisted and bent directly from the controllers to the ribbon
The node process for getting twist, bend, and scale on the new ribbon
In this screenshot, I breakdown how I get my animation behavior.
1) A plusMinusAverage node is used to get twist by taking the rotation values of the end controllers and outputting the average between them. For example, if loc_05 rotates by 50°, loc_03 is rotate 25°.
2) An aimMatrix node is used to keep the middle locator pointing towards direction of the end controllers which matters for both twist and bend. This is done by plugging loc_01's world matrix into the input matrix, giving it a starting point to aim. This makes the locator aim at loc_01, but only from a stationary point. If the other end of the ribbon is moved and the middle controller is moved up in space, it is now pointing at an area above loc_01. To fix this, loc_05's world matrix is plugged into the primary target matrix. This way loc_03 also identifies loc_05 as a point to aim at, and by also pointing at loc_05, it will point the other end towards loc_01. The loc_03 now has 2 points it is aiming at. The secondary target can then be used for a Y-up aim, but in my example I don't have that. These values are then taken and plugged into the Y & Z axis of loc_03.
The reason this issue needs to be solved is because wherever the middle points dictates how the ribbon will deform. Remember, the locator is directly driving the geometry, therefore it needs to follow the direction of the end locators. I don't want the twist to bend at an incorrect offset, I want it to bend facing the direction of the ribbon.
3) A blendMatrix node is used to drive the position and scale of the middle locator. This node is set up to be the average between loc_01 and loc_05. It is setup in the offset parent matrix so that the translation and scale values of loc_03 can be used to create a bend. The blendMatrix node is ran through a pickMatrix node where I cancelled out the rotation. I wanted to use this node for translation and scale, not rotation.
This same setup can then be replicated for the other controllers between the middle and ends to give an extra layer of control. The red controllers (loc_02 & loc_04) now follow twist, aim, bend, and scale behaviors as well.
All controllers connected to twist, bend, and scale the entire ribbon.
One aspect to note is that I am using the blendMatrix to get rotation.
